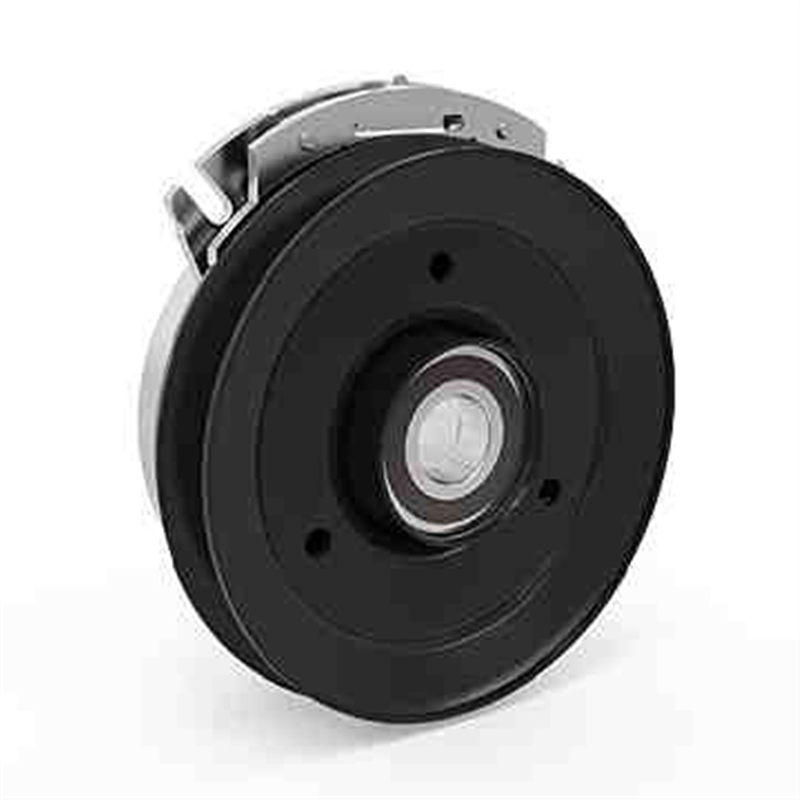

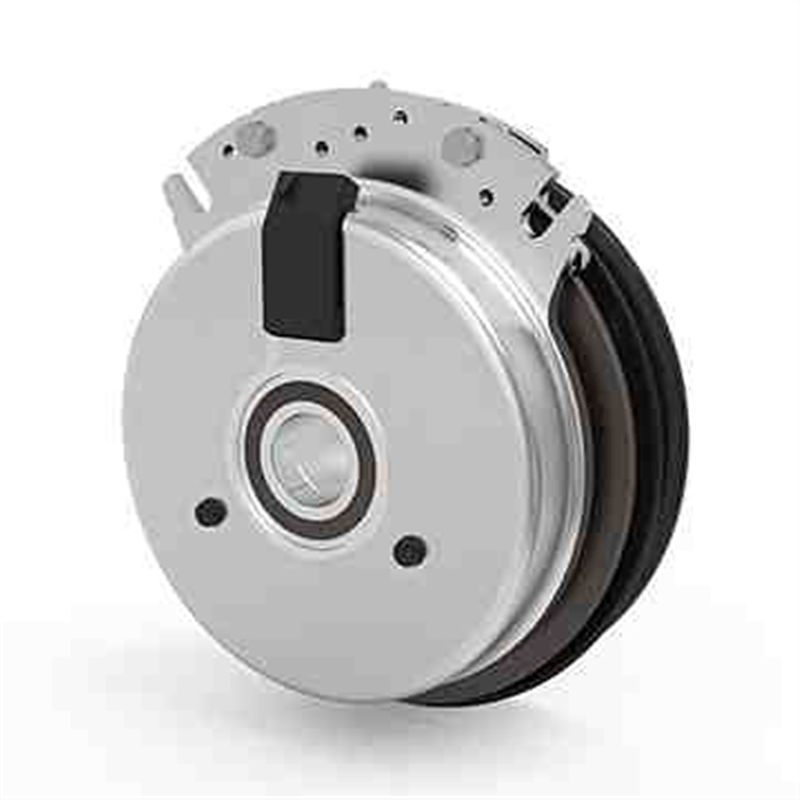

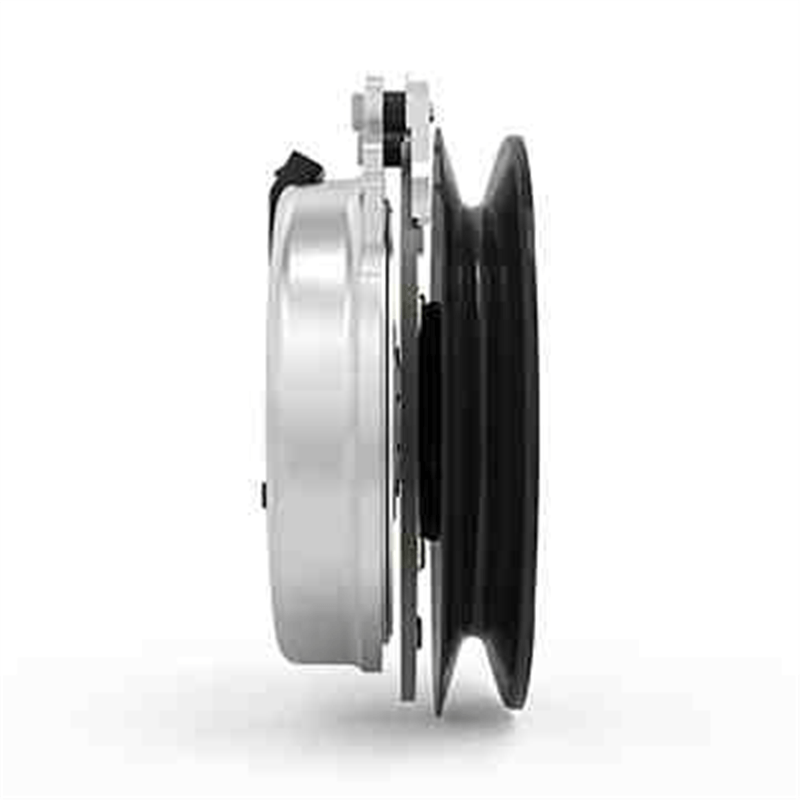

Warner Clutch Electric PTO Replaces Toro 116-1620

Part #: H3407683

Commercial MagStop clutch provide engineered efficiency to achieve high torque and maintenance-free operation for continuous duty and long life. Designed for heavy-duty mowers (with up to 96-inch decks) and power ratings through 37 HP.

Product Specs

  • Height (Inches)3.250
  • Inner Diameter1.125
  • Rotation DirectionCounterclockwise
  • Belt Width0.625
  • Pulley Diameter7.390

Replaces OEM

  • Exmark109-9282, 116-1604, 116-1620
  • Toro109-9282, 116-1620, 116-1604
  • Warner5218-207, 5218-163

Packaging Specs

  • Package TypeCorrugate Carton

Additional Information:

  • Permanent Magnet Braking System with proven application through 37 HP / 96-inch decks
  • Zinc/clear dichromate plating enhances corrosion protection and product appearance
  • Preassembled for quick installation and maintenance-free use requiring no adjustment
  • The 'D' drive mounting system secures the crankshaft while tightening to proper torque
  • Rated torque (lb/ft) 200
