Henry's Spindle Assembly AYP 587819701

Part #: H3307636

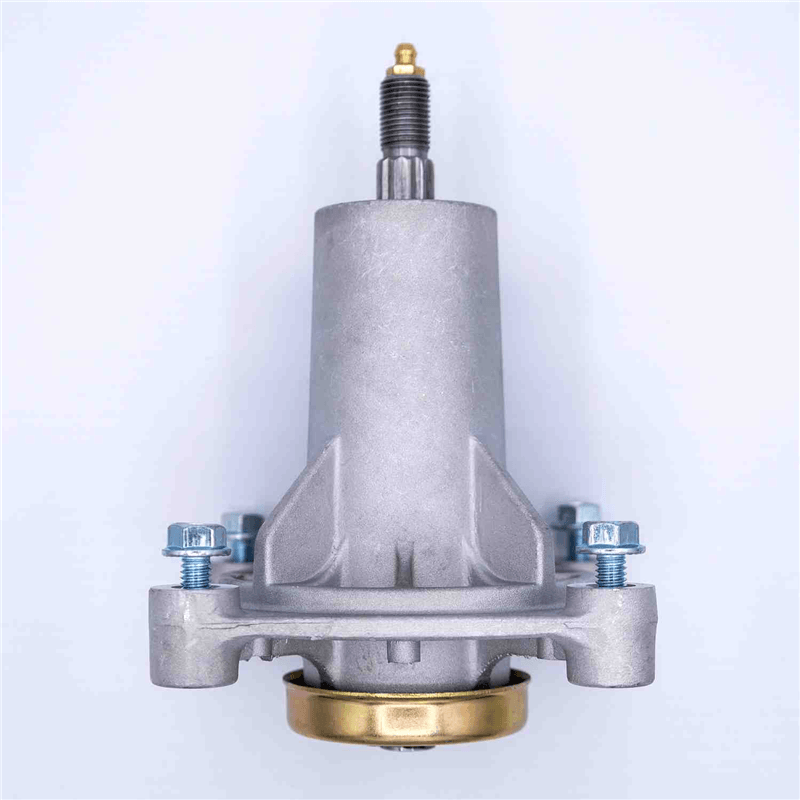

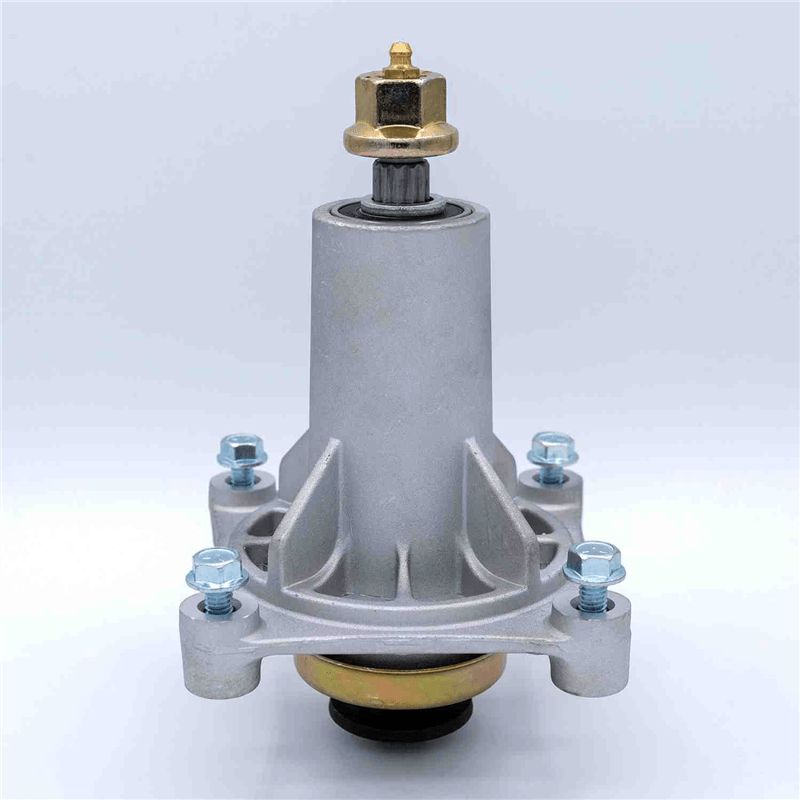

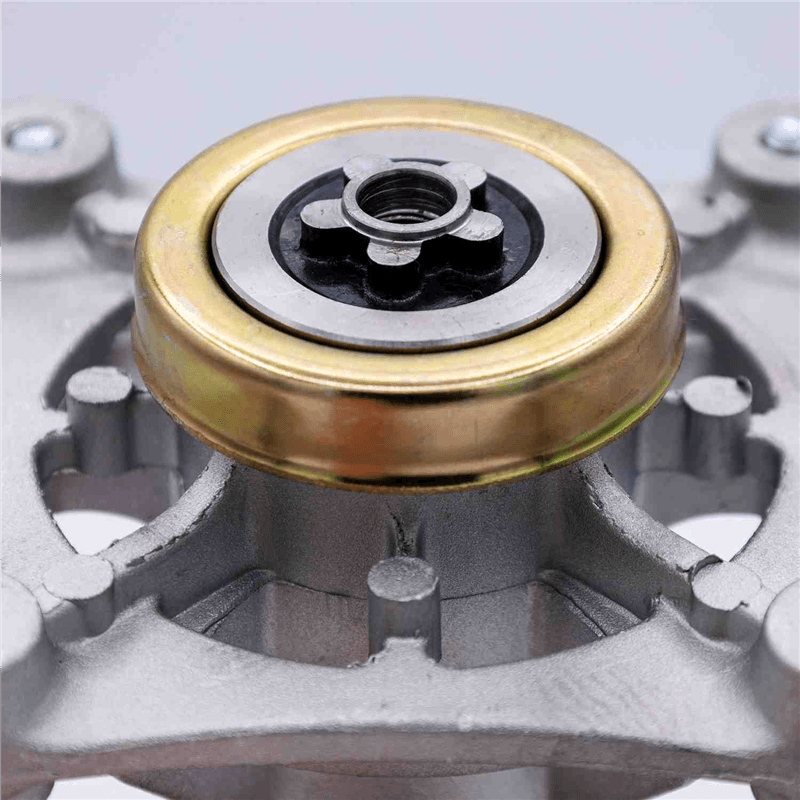

Spindle assembly with four pre-tapped hole design and 5 pt. star blade mount that replaces Husqvarna and AYP. Assembly includes blade bolt, pulley nut, mounting bolts and grease zerk on threaded end of shaft.

Product Specs

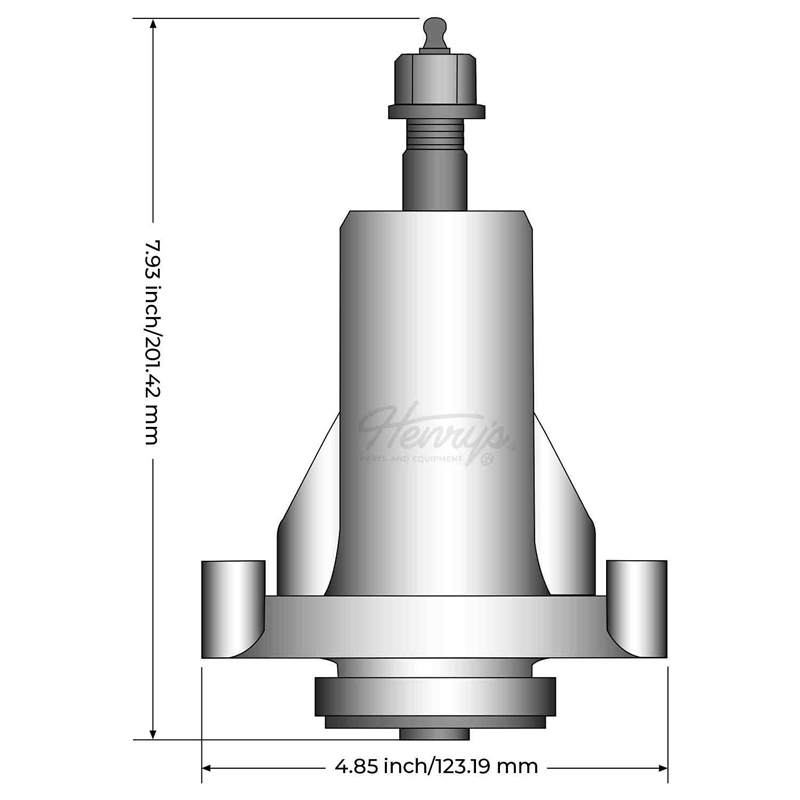

Height (Inches)7.930
IncludesComplete Assembly

Replaces OEM

Ariens21546238, 21546299, 21549012
AYP539-112057, 532187290, 21549012, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301
Dixon21549012
Husqvarna21546299, 21549012, 532192870, 187292, 21546238, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 532187292, 539112057, 532 18 72-92, 5321872-92, 532-1872-92, 5872533-01, 5878197-01
Poulan539-112057, 21549012, 532192870
Roper539112057, 587820301, 532187290, 539-112057, 187292, 192870, 532187281, 532187292, 532192870
Sears187292, 192870, 532187281, 532187292, 532192870, 539112057, 587820301, 532187290, 539-112057

Packaging Specs

Case Quantity6
Pallet Quantity216

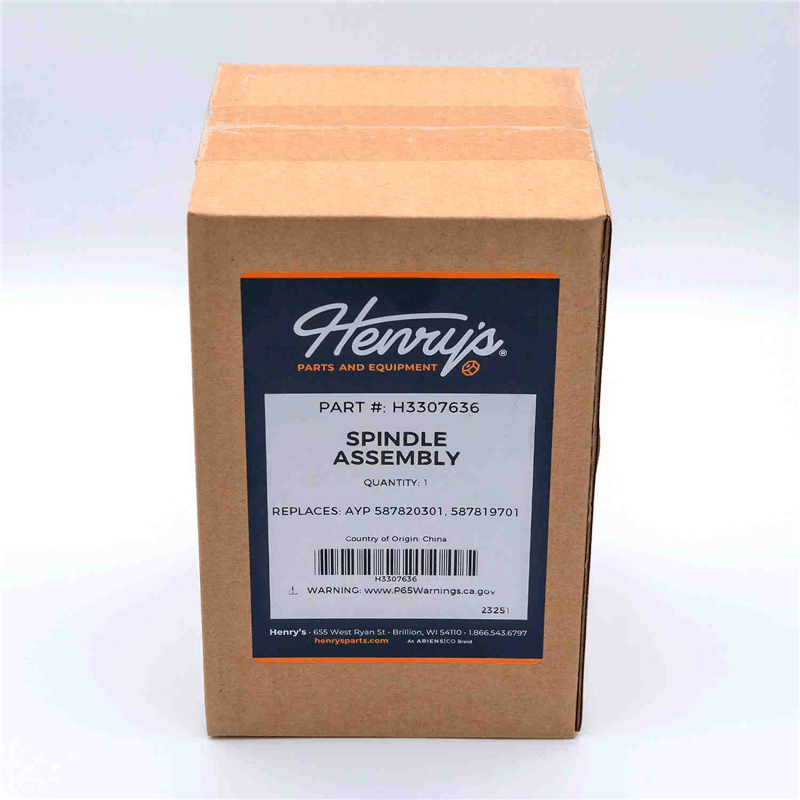

Package TypeCorrugate Carton

Additional Information:

ADEQUATE SPINDLE LUBRICATION IS REQUIRED BEFORE USE
Replacement spindle assembly with four pre-tapped hole design and 5 pt. star blade mount

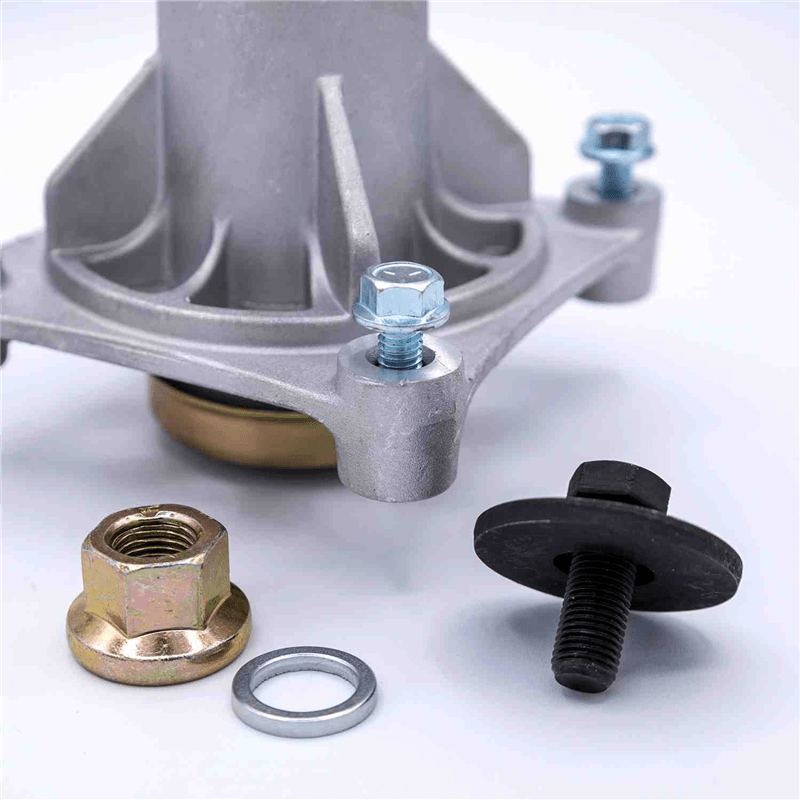

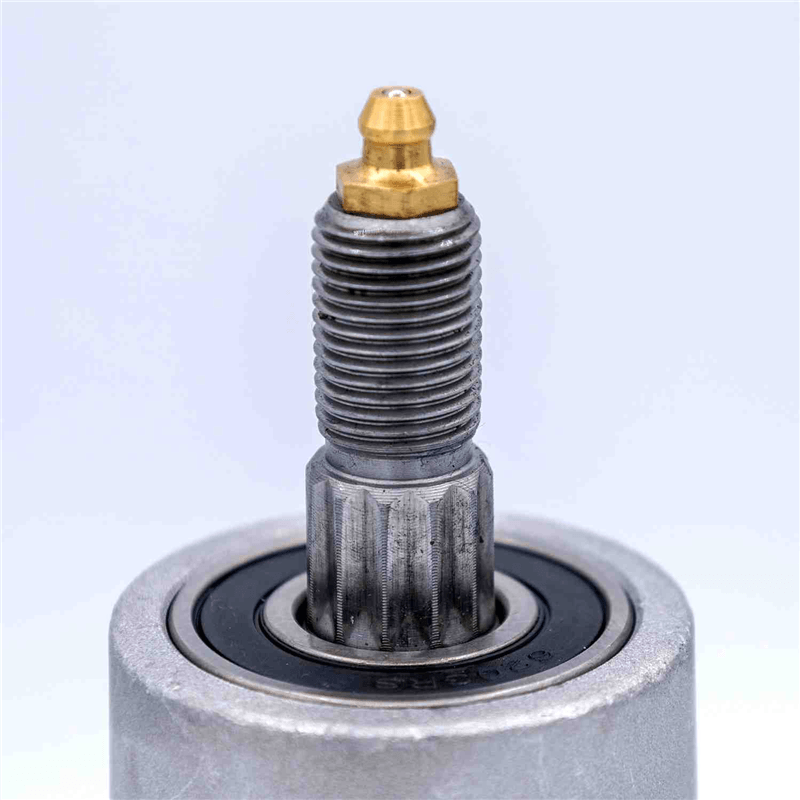

Includes blade bolt, pulley nut, mounting bolts and grease zerk on threaded end of shaft
Replaces Husqvarna and AYP
Designed to match the specifications of the equivalent OEM spindle
